MULTI
Customizable | Retrievable
The Sentek MULTI is a Data Transmission Unit (DTU) that sends the data to a secure site for data analysis, via cellular network or satellite.

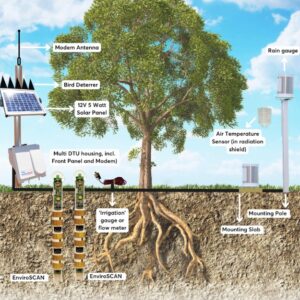

Comprehensive site information can include soil moisture, nutrients, air and soil temperature, rainfall, irrigation flow, and pressure.
Features
- Ability to create a customised system using multiple inputs
- Connect up to two cabled soil data probes
- Add-on connections to temperature, rain and irrigation monitoring systems
- Data transmission via cellular or satellite modem
- Customize a flexible system that can accommodate any 2 Sentek probes with cable lengths up to 200m (218 yards), along with 4 other sensors
Specifications
| Probe Type | All RS485 Drill & Drop and/or EnviroSCAN probes |
| Battery | 12 V 7.5 Ah Sealed Lead Acid (SLA) battery |
| Solar Panel | 16 V |
| Operating Temperature | -40°C to +65°C |
| Compatibility Options | Cellular: region specific, including 4G Cat-M1 and 2G networks (requires micro SIM, supplied external 7 dB antenna) or Satellite communications |
| Mounting | MULTI unit and separate solar panel need to be mounted on a pole |
| Weight | 3550g (including mounting bracket) |
